OCEAN SEVEN series CTD temperature and salt depth meter -

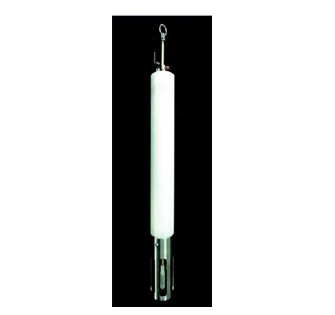

OCEAN SEVEN series CTD temperature and salt depth meter
- BrandItaly Idronaut
- Model
- OriginImport
The CTD allows the operator to select the appropriate conductivity measurement range for seawater or fresh water, which makes the device the most sensible choice in groundwater and ocean surveys.Can b
The CTD allows the operator to select the appropriate conductivity measurement range for seawater or fresh water, which makes the device the most sensible choice in groundwater and ocean surveys.
Can be installed 9 sensors, can access chlorophyll, turbidity, optical dissolved oxygen, light and effective radiation radiation and other third-party sensors. The maximum sampling frequency is 12Hz.
A variety of power supply battery selection. The NiMH battery pack ensures that the CTD operates in continuous mode (12 Hz) for 50 hours.
2GB of memory can store 60000000 group of data.
According to the maximum laying depth, divided into 1000,2000 m, 10000m three versions.
Parameter measurement range precision resolution time constant
Depth 0 ~ 10000dbar adjustable 0.05% FS 0.0015% FS 50ms
Temperature -1 ~ 50 ° C 0.005 ° C 0.001 ° C 50ms
Conducted fresh water 0 ~ 7000uS / cm 5uS / cm 0.1uS / cm 50ms
Seawater 0 ~ 70ms / cm 0.007ms / cm 0.001ms / cm 50ms
