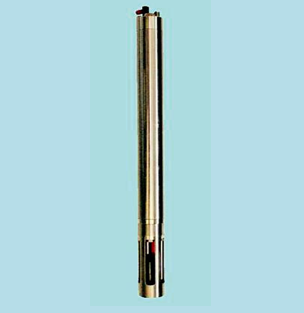

OCEAN SEVEN series CTD temperature and salt depth meter -
OCEAN SEVEN series CTD temperature and salt depth meter
- BrandItaly Idronaut
- Model
- OriginImport
OCEAN SEVEN series has the characteristics of small diameter and extremely low power consumption. The data transmission rate can reach 115200bps and the maximum sampling frequency is 8Hz. Four sensors
OCEAN SEVEN series has the characteristics of small diameter and extremely low power consumption. The data transmission rate can reach 115200bps and the maximum sampling frequency is 8Hz. Four sensors can be installed, which can choose high precision pressure, turbidity or dissolved oxygen sensor,
C-type lithium battery can guarantee CTD in continuous mode for 180 hours.
parameter | Measuring range | Accuracy | Resolution | The time constant |
depth | 0～10000dbar可調(diào) | 0.05%FS | 0.0015%FS | 50ms |
temperature | ﹣5～35°C | 0.002°C | 0.0001°C | 50ms |
Conductivity | 0～90ms/cm | 0.003ms/cm | 0.0003ms/cm | 50ms |
