Automatic CO 2 on-line monitoring system -
Automatic CO 2 on-line monitoring system
- BrandUnited States Battelle
- Model
- OriginImport
The automatic CO2 on-line monitoring system is manufactured and manufactured by Battelle, Inc., which provides remote sensing of the atmospheric and seawater (pCO2) for the marine environment. The pro

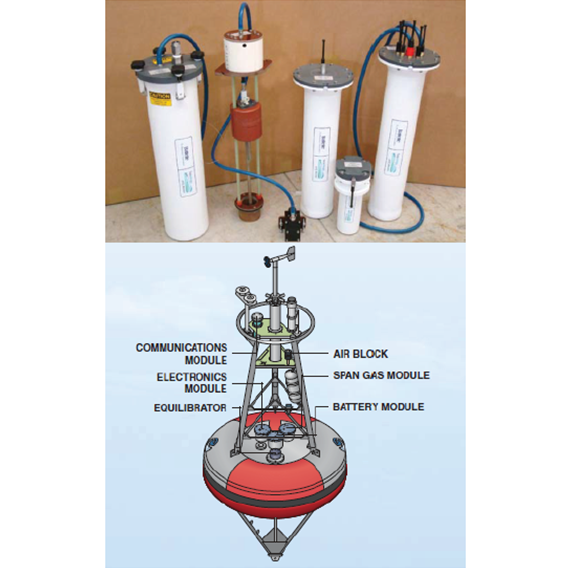

The automatic CO2 on-line monitoring system is manufactured and manufactured by Battelle, Inc., which provides remote sensing of the atmospheric and seawater (pCO2) for the marine environment. The product is modular in design and easy to install and maintain. The main components include: Unit, standard gas unit, balancer unit, power supply unit, communication unit. Using the LI-COR non-dispersive infrared detector NDIR, it has the characteristics of simple maintenance, long maintenance period, stable measurement data and no drift.
Measurement technology: non - dispersive infrared detector NDIR
Measuring range: 100ppm ~ 600ppm (range can be extended according to user requirements)
Accuracy: 1ppm
Analyzer maximum flow rate: 1L / min
Operating temperature: 0 ~ 40 ℃
Laying period: at least 12 months (8 samples / day)
Power supply: Analysis unit 10VDC (7 ~ 14.5VDC) Communication unit 8VDC (5.6 ~ 11.2VDC)
Shell material: corrosion-resistant anti-aging composite materials
