Continuous color imaging and classification system for underwater plankton
- BrandUnited States Coastal Ocean Vision
- ModelCPICS-100
- OriginImport

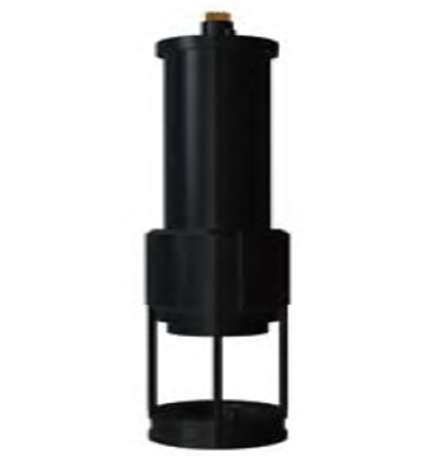

The CPICS-100 uses advanced Darkfield Illumination to capture high-resolution color images up to 1μm. CPICS-100 has an open field of view, underwater direct imaging, water organisms in a free swimming
The CPICS-100 uses advanced Darkfield Illumination to capture high-resolution color images up to 1μm. CPICS-100 has an open field of view, underwater direct imaging, water organisms in a free swimming state, it can be a complete capture of zooplankton's fine biological structure and the original state of life, such as the predation process.
Light source: High output LED ring array, exposure: 10μs
Maximum pressure rating: 200m, 2,000m, 10000m
Color resolution: 12-bits
Image resolution: 6 megapixels (2750 x 2000)
Fastest frame rate: 10 fps (10 frames per second)
Image analysis: manual classification software ROI-SORT, automatic classification software ROI-CLASS
Power supply: 24V / 4W (watertight connector SubConn DBH13M)
Size: length × diameter 45cm × 10cm
Weight: 2.5kg in the air, 2.5kg in water
