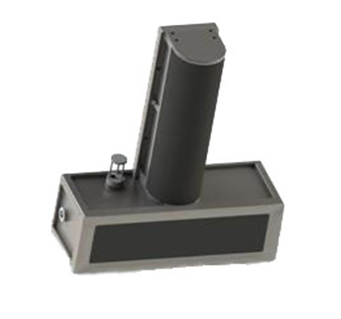

Seasurvy MS200 multi - beam depth sounder -
Seasurvy MS200 multi - beam depth sounder
- BrandHaizhu Tongchuang
- ModelSeasurvy MS200
- OriginMade in China
SeaSurvery-MS200 multi-beam sounding system using a number of international advanced technology and first-class industrial design, is a truly international level of advanced marine observation equipme
SeaSurvery-MS200 multi-beam sounding system using a number of international advanced technology and first-class industrial design, is a truly international level of advanced marine observation equipment.
Operating frequency 200kHz
Depth range of 0.5 meters to 500 meters
The maximum beam angle is 160 °
Maximum number of beams 512
Beam width 1 ° (Rx) × 1 ° (Tx)
Pulse length minimum pulse width of 50us or less
The maximum ping rate is 50Hz
Real time vertical and horizontal compensation ± 10 °
Depth resolution 1.5cm
The working depth of the transducer is not less than 50m
