Watertight connectors -
Watertight connectors
- Brand
- Model
- Origin
R & D and production company LH-C0N series of water-water connector, widely used in underwater robot systems and various types of marine equipment. The series of watertight connectors include 2-pi

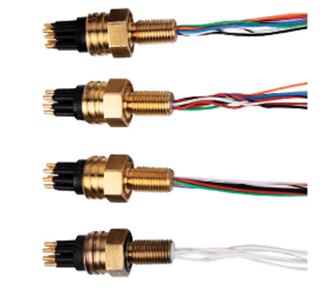

R & D and production company LH-C0N series of water-water connector, widely used in underwater robot systems and various types of marine equipment. The series of watertight connectors include 2-pin, 4-pin, 6-pin, 8-pin connector and high-power square head 9-pin connector, etc., can also be customized according to user needs models, maximum 6000 m pressure, long-term use of stable and reliable.
Plug metal body: 316 stainless steel CA630A copper alloy
Sealing head: neoprene
Mounting Screw: 7,16-20 UNF-2A
Plug contact pin: gold plated copper alloy
Installation cable: silver plated copper wire (maximum 0.75 square)
Seal: Nitrile rubber O-ring
2 core, 4 core Rated current: 10A
6 core, 8 core Rated current: 5A
Flat 9 core high power rated current: 10A
Pressure value: 300 V AC (85% of DC)
Insulation resistance:> 200MΩ
Contact resistance: <0.03Ω
Plugg time: more than 600 times
Maximum working depth: 6000M
